pushbuttons – KDTC-series

Pushbuttons in a high-class plastic housing (ABS) IP65.

Model overview

KDT1Buzzer 200.1B00.0S

KDT 1 Buzzer

Item number

Ref.: 200.1B00.0R – red

Ref.: 200.1B00.0S – black

KDT1Buzzer-Schaltbild
KDT1Buzzer-Skizze
KDT2C 201.2100.00

KDT 2C

Item number

Ref.: 201.2100.V0 – prewired

Ref.: 201.2100.00 – unwired

KDT2C-Schaltbild
KDT2C-Skizze
KDT3C 201.3100.00

KDT 3C

Item number

Ref.: 201.3100.V0 – prewired

Ref.: 201.3100.00 – unwired

KDT3C-Schaltbild
KDT3C-Skizze

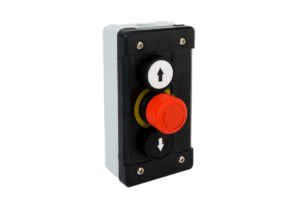

KDT3CN 201.31N0.00

KDT 3C N

Item number

Ref.: 201.31N0.V0 – prewired emergency stop

Ref.: 201.31N0.00 – unwired emergency stop

KDT3CN-Schaltbild
KDT3CN-Skizze

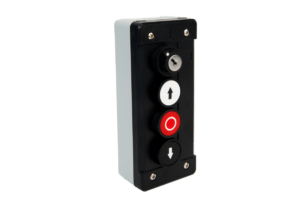

KDT4C 201.4100.00

KDT 4C

Item number

Ref.: 201.4100.V0 – prewired

Ref.: 201.4100.00 – unwired

KDT4C-Schaltbild
KDT4C-Skizze
KDT4CN 201.41N0.00

KDT 4C N

Item number

Ref.: 201.41N0.V0 – prewired emergency stop

Ref.: 201.41N0.00 – unwired emergency stop

KDT4CN-Schaltbild
KDT4CN-Skizze
