• key switches

-NEW-

key switches – MRN-series

The MRN key switch is a built-in key switch for all 60 mm (diameter) round drills, so you can easily mount it on the wall without much effort.

Product details: Patented 1-screw locking system, Anti-burglary by mechanical security system, Protection class IP54

key switches – M-APZ & MR-series

Compact aluminium die-cast key switch with mechanical security locking.

Product details: robust metal housing, timeless design, protection class IP54

*optional features: alarm contact; LED red/green

Model overview

MRN-Series

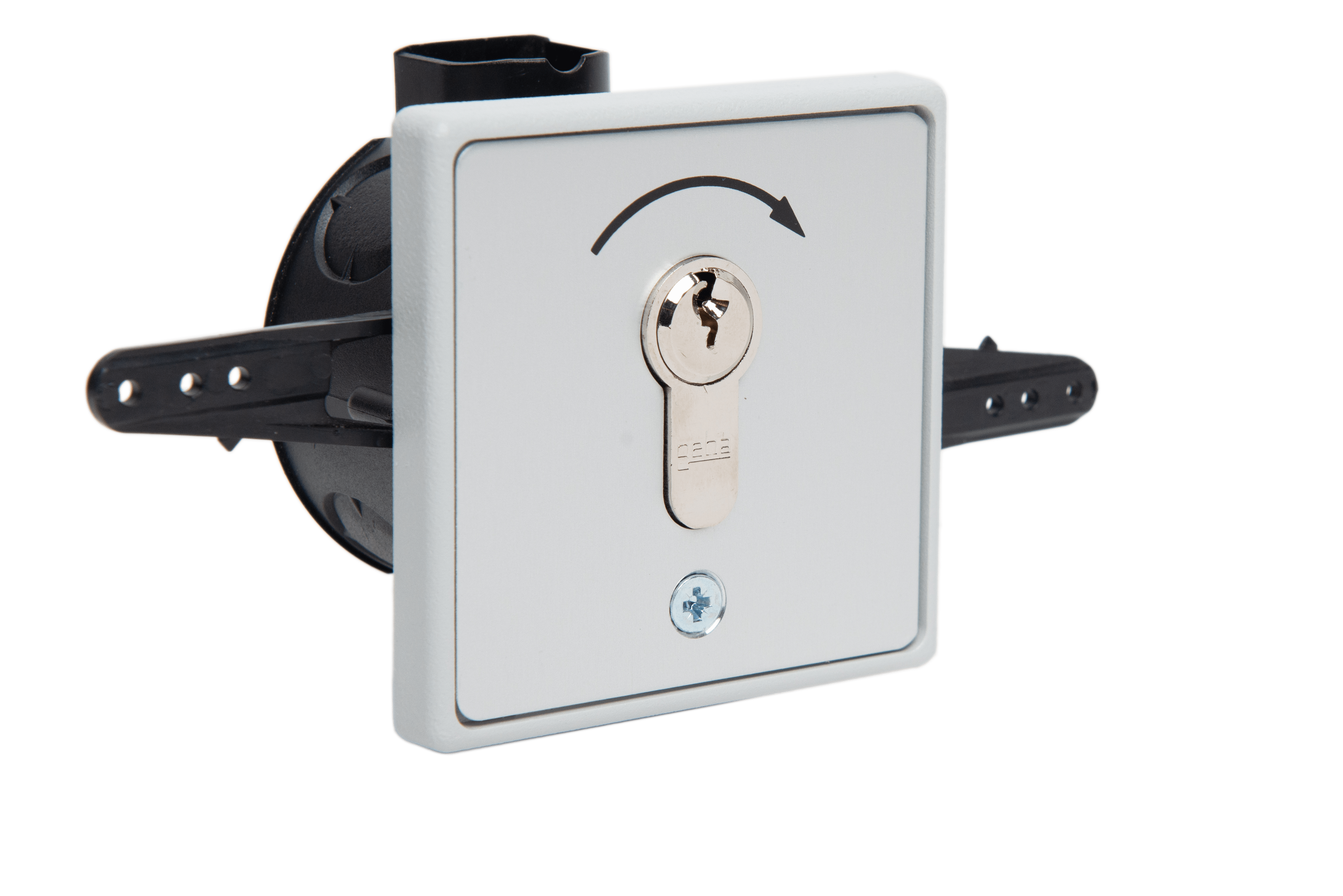

MRN

1-1T

Built-in key switch for all round drills

60 mm diameter

45 mm depth

one way momentary

Item number

Ref.: 127.1101.10 – with cylinder

Ref.: 127.1101.00 – without cylinder

More information about the MRN here

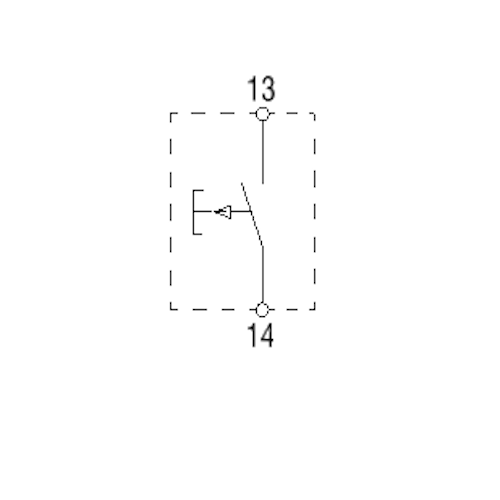

MR_1-1T_Schaltbild

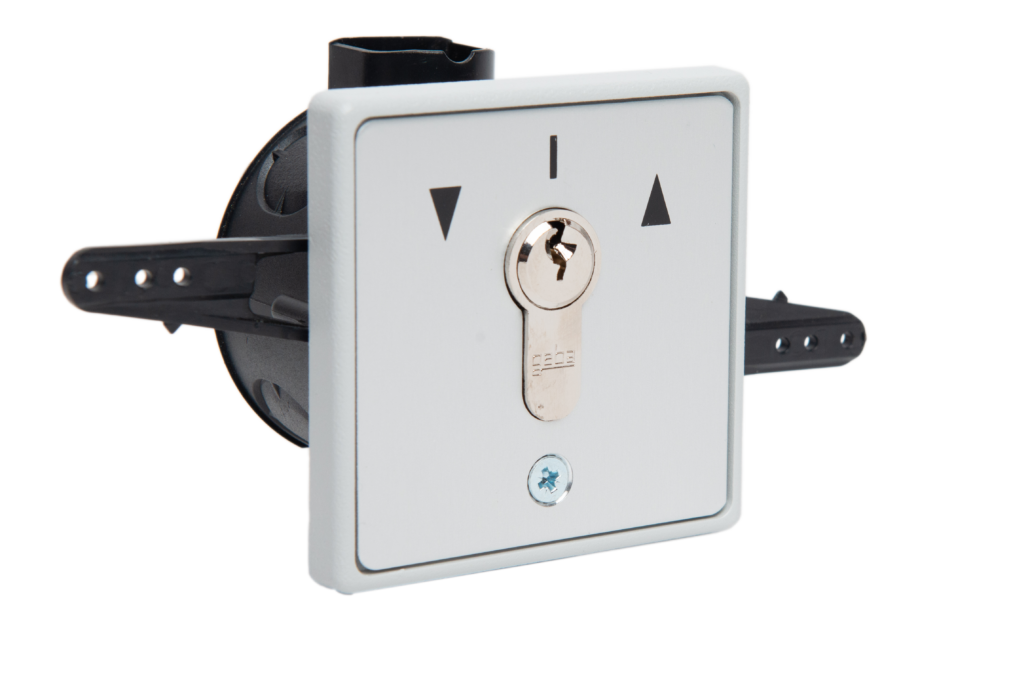

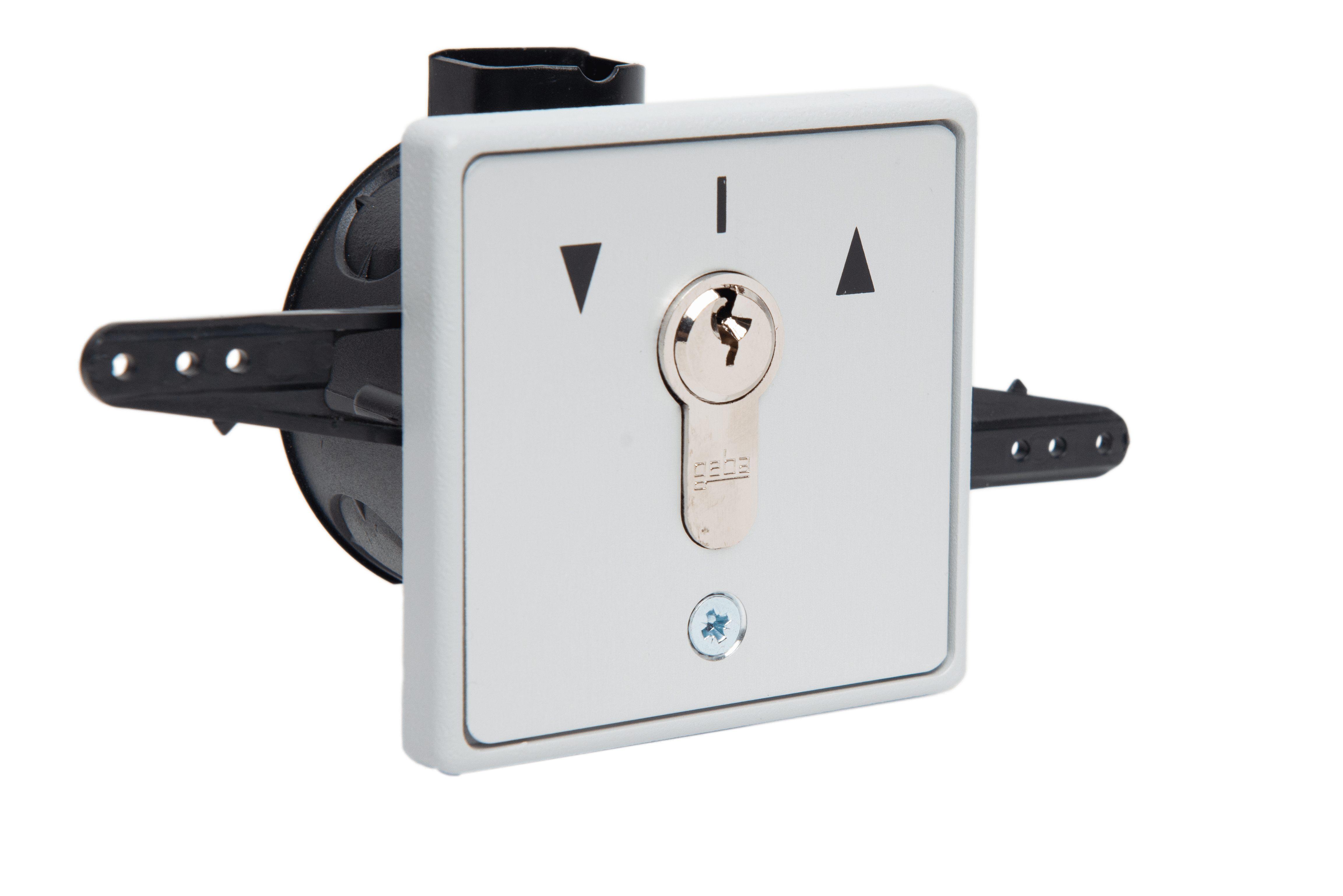

MRN

1-2T

Built-in key switch for all round drills

60 mm diameter

45 mm depth

two way momentary

Item number

Ref.: 127.1301.10 – with cylinder

Ref.: 127.1301.00 – without cylinder

More information about the MRN here

Model overview

M-APZ- & MR-Series

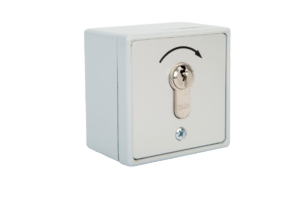

M-APZ 1-1T 007_1101_10

M-APZ

1-1T

surface mount key switch, one way momentary

Item number

Ref.: 007.1101.10 – with cylinder

Ref.: 007.1101.00 – without cylinder

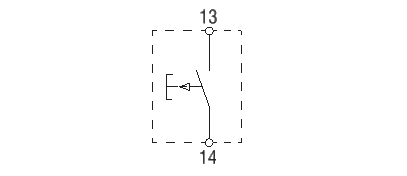

M-APZ 1-1T Schaltbild

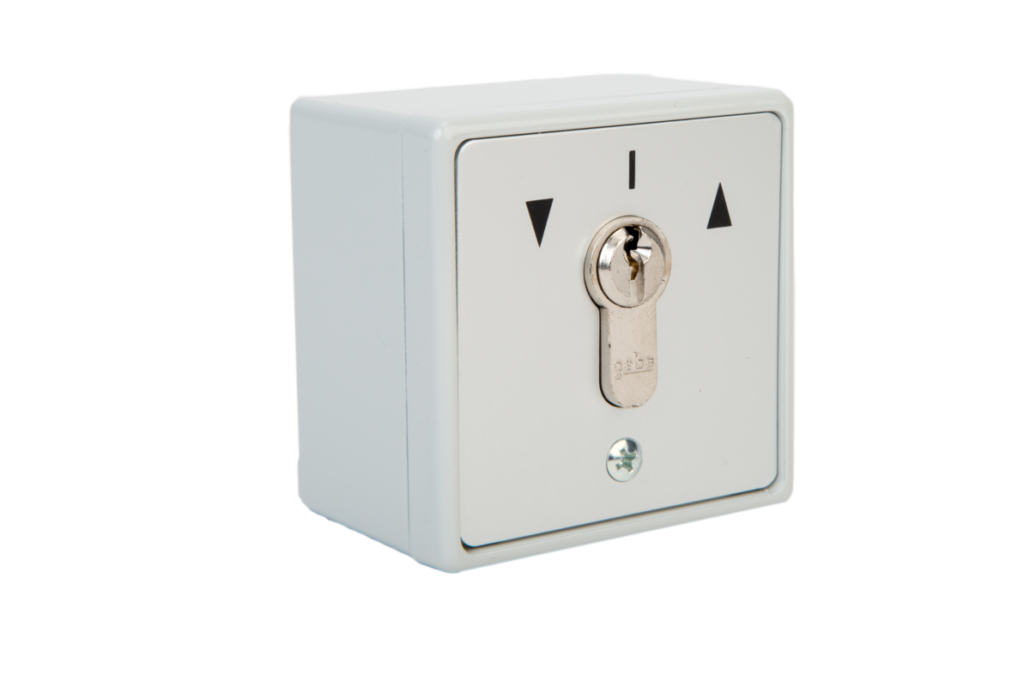

M-APZ 1-2T 007_1301_10

M-APZ

1-2T

surface mount key switch, two way momentary

Item number

Ref.: 007.1301.10 – with cylinder

Ref.: 007.1301.00 – without cylinder

M-APZ 1-2T Schaltbild

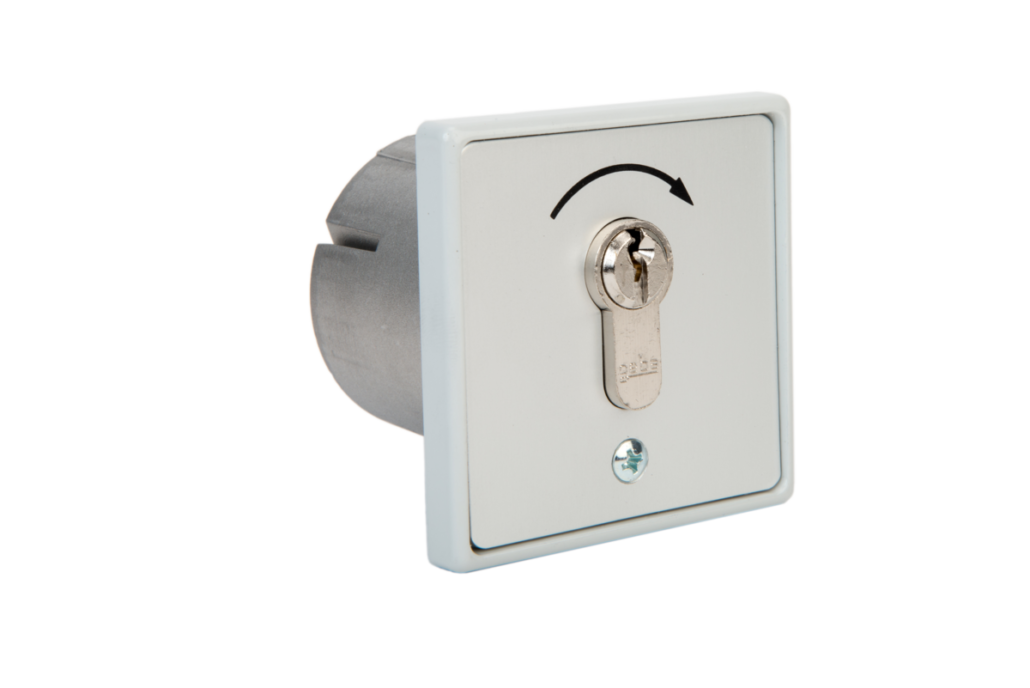

MR 1-1T 017_1101_10

MR

1-1T

flush mount key switch, one way momentary

Item number

Ref.: 017.1101.10 – with cylinder

Ref.: 017.1101.00 – without cylinder

MR 1-1T Schaltbild

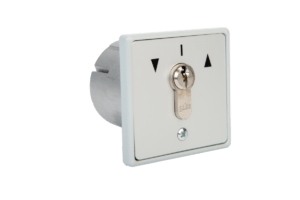

MR 1-2T 017_1301_10

MR

1-2T

flush mount key switch, two way momentary

Item number

Ref.: 017.1301.10 – with cylinder

Ref.: 017.1301.00 – without cylinder

MR 1-2T Schaltbild
